The Hidden Cost of Poor Pipe Fit-Up
If you run a fab shop, you already know poor fit-up causes problems. But most shops underestimate just how expensive those problems really are. The costs don't stop at the grinding wheel — they cascade through every stage of fabrication, compounding in ways that are rarely tracked and almost never billed back to the root cause.
The Domino Effect of a Bad Cut
It starts at the saw or torch. If the cut face isn't square, or the bevel angle wanders, or the land dimension is inconsistent, the fitter is the first person to pay for it. They're the one with the grinder, trying to true up a cut that should have been right from the start.

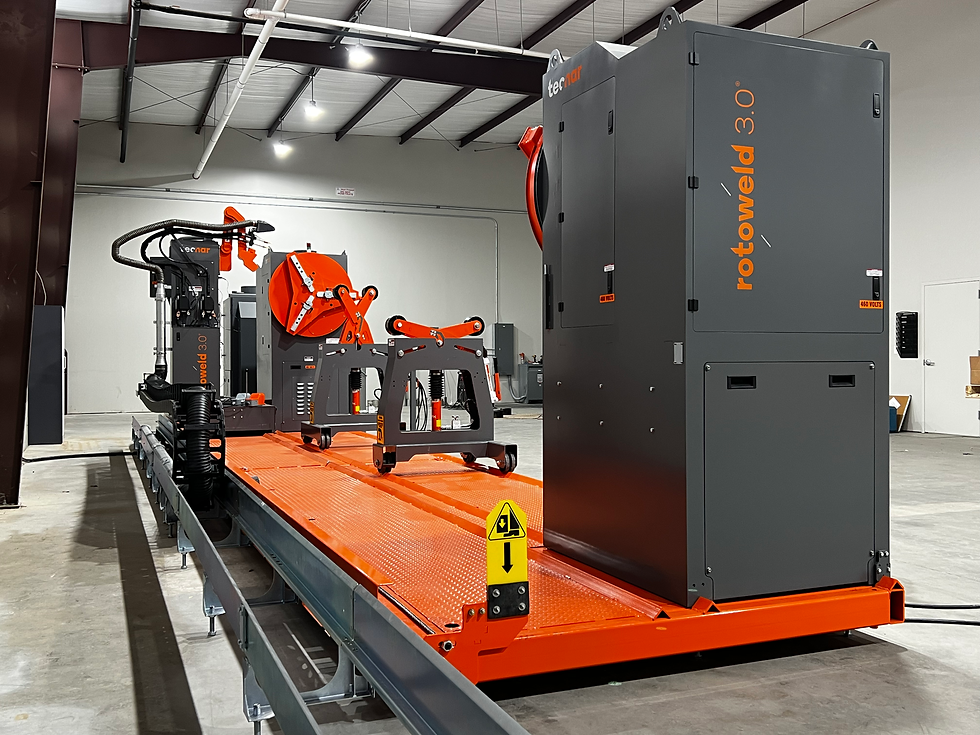

But it doesn't stop with the fitter. An aggressively ground joint has an inconsistent root gap — wide in some spots, tight in others. The welder now has to manage that variability in real time, adjusting travel speed and filler deposition to compensate. On a manual joint, this means slower welding and higher risk of defects. On an automated system like a Rotoweld or orbital welder, the machine's AI can compensate to a point, but even the best automation performs better with consistent input.
What Poor Fit-Up Actually Costs: A Breakdown
Let's quantify what's happening on your shop floor right now.
Fitter time is your first cost. If a fitter spends an extra 15 minutes per joint grinding and adjusting because the cut wasn't right, multiply that across your annual joint count. At 20 joints per day, that's 5 hours of productive fitter time lost — every day. At a fully burdened labor rate of $60-80 per hour for a skilled pipe fitter, you're looking at $300-400 in wasted labor per day, or $75,000-100,000 per year on a single shift.
Welder efficiency drops next. Inconsistent root gaps mean the welder can't establish a rhythm. They're constantly adjusting, backing off, building up. A joint that should take 15 minutes of arc time takes 20 or 25. At the same labor rate, across the same 20 joints per day, that's another 1.5-3 hours of lost productivity daily.
Rework and repair is the most visible cost but often the smallest — because once a weld fails inspection, everyone focuses on the fix. The bigger cost is the slow bleed of inefficiency on joints that pass but took 30-50% longer than they should have. Those don't show up on any defect report.
Consumables are the silent cost. More grinding means more wheels, discs, and abrasive belts. More arc time per joint means more filler metal, more shielding gas, more tungsten grinding. None of these line items look alarming on their own, but together they add 10-15% to your consumable spend — material that's literally being ground into dust because the cut wasn't right.
Where the Problem Starts
Manual pipe cutting is inherently imprecise. A layout mark, a torch cut, a grinder cleanup — each step introduces cumulative error. Even on a well-organized shop floor, manual cutting produces bevel angles that vary by 3-5 degrees and land dimensions that wander by 1/16 inch or more.
A CNC pipe profiling machine — like the HGG ProCutter — eliminates this variability. The machine cuts to your CAD model, producing bevel angles accurate to within a degree and land dimensions consistent to within thousandths. Every joint coming off the machine is the same as the last.
The ROI of Precision Cutting
A precision CNC profiling machine is a significant capital investment, but the payback math is straightforward when you account for the hidden costs above.
A medium-sized fab shop processing 10,000 joints per year can easily save $100,000-150,000 annually in reduced fitter time, faster welding, lower rework rates, and decreased consumable usage. That puts payback on a profiling machine in the 12-18 month range for many shops — and that's before accounting for the increased throughput capacity that comes from freed-up fitter and welder hours.
The shops that benefit most are those running production spools with repetitive joint configurations — mechanical contractors, process piping fabricators, and industrial pipe shops. But even mixed-volume shops can justify the investment if they're honest about how much time their crews spend compensating for inconsistent cutting.
Start by Measuring What You're Losing
The first step isn't buying a machine — it's understanding the true cost of your current process. Track fit-up time, weld time, and rework rates on a representative sample of joints over a few weeks. Compare the joints that went smoothly (good cuts, fast fit-up) against the ones that fought the crew every step of the way. The gap between those numbers is your opportunity.
GSI Machinery helps fab shops evaluate their cutting and profiling needs — from manual equipment through full CNC automation like the HGG ProCutter line. If you want to understand what precision profiling could do for your throughput and bottom line, reach out. We'll help you run the numbers on your actual joint mix and production volume.
